Choosing power equipment for an upstream site is a sequence rather than a comparison, and taking the steps out of order is what produces expensive corrections later. Safety classification comes first because it constrains everything after it; duty and rating come next; then environmental derating, then redundancy, then support. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, publishes generator sets and battery storage for this sector with documented oilfield deliveries, and its material is most useful read against that sequence.
MPMC 3000 kVA open-type high-voltage diesel generator set
First: Establish the Classified Area Boundary
Power equipment is normally sited outside the classified zone, but the boundary is an output of the site's own hazardous-area study rather than an assumption to be inherited from a similar project. Until that drawing exists, no equipment decision is safe to make.
Supplier material should be read carefully at this step. Hazardous-area suitability is determined by equipment, by zone and by the certification regime applying in the jurisdiction. A general reference to explosion-proof provisions describes what was fitted on a particular delivered installation; it does not confer approval on a different configuration, and each item must be verified against the project's own classification.
Second: Fix the Duty Before Comparing Ratings
Upstream loads usually run continuously, which makes the continuous or prime rating the relevant figure rather than the standby number that appears first on most datasheets. MPMC lists ISO 8528-5:2018, GB/T 2820.5-2009 and ISO 3046 among applicable standards, with generator sets designed to ISO 8528 for continuous operation.
The load profile matters as much as the peak. Wellhead and process loads include large motors whose starting current the set must carry alone where there is no grid, while the same site may sit at modest load for long periods. Both ends of that range belong in the enquiry.
Third: Apply the Environment Before Selecting a Model
|
Condition |
Published MPMC position |
What to request |
|
High ambient |
Maximum 50°C with copper high-temperature radiator options |
Derated output at the site design ambient, with the calculation |
|
Altitude |
Derating applied per engine model specification |
The altitude derating figure for the offered engine |
|
Corrosive atmosphere |
ISO 12944 coating in C-3, C-4 and C-5 classes; salt spray tested 500–700 hours twice yearly |
Class against measured exposure, film thickness, touch-up procedure |
|
Distributed loads |
High-voltage output listed at 10–11 kV on selected models |
Distribution study before the model is fixed |
|
Fuel policy |
Diesel to ASTM D975 2D; HVO to EN 15940 and B20 on selected models; gas and methanol platforms listed |
Written fuel approval from the engine maker as well as the packager |
Fourth: Design the Redundancy, Not Just the Spare
An N+X label means little until the failure modes it covers are written down. MPMC lists multi-unit parallel operation with load sharing through DSE or DEIF controllers and motorised circuit breakers, and publishes a Middle East oilfield installation operating in island mode with master-standby rotation under an N+X strategy.
That published installation also documents the safety architecture worth extracting into a specification: a dual-start arrangement using compressed air as the primary route with electric start as backup, an SF₆ gas-insulated vacuum circuit breaker, a neutral grounding resistor, smoke, temperature and UV/IR flame detection, and a 2 × 45 kg automatic CO₂ suppression system with shutdown and louvre closure. Each provision still requires verification against the project's own classification and fire strategy.

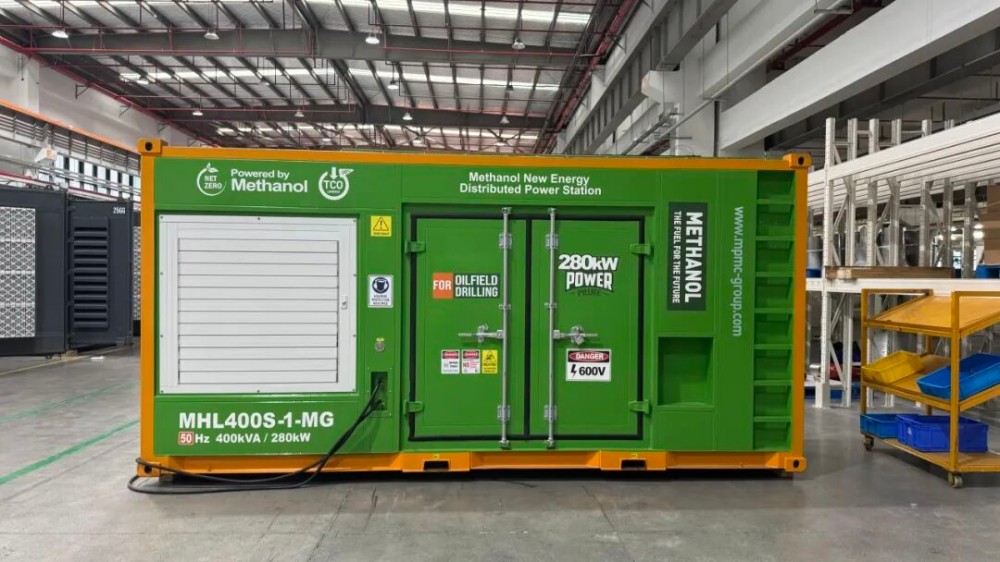

MPMC methanol distributed power station — MHL400S-1-MG
Where Storage Belongs in the Sequence
Battery storage enters upstream power for a narrower purpose than it does on commercial sites. It absorbs transient loads, lets engines hold a load point nearer their efficient region, and allows units to be shut down during low demand while retaining the ability to respond. MPMC positions its HBD-R series in this role from 30 kW to 610 kW continuous and 61.44 to 610.6 kWh, and lists a wellhead peak-shaving installation configured as six 250 kWh units at 2C with 500 kW.
Adding storage does not relax any safety requirement established in the first step. The battery enclosure, its fire suppression and its position relative to classified areas require the same verification as the generation equipment, which is why storage belongs after the classification study in the sequence rather than alongside it.
Fifth: Confirm Support Before Signing
Remote upstream sites turn a routine part into a logistics problem. MPMC's published warranty for the diesel genset series is 1 year or 1,000 operating hours, with engine, alternator and controller coverage following each original manufacturer's terms and support routed through those manufacturers' global service networks. Labour, travel and airfreight are normally excluded unless agreed in the contract.
The practical consequence is that engine brand selection should follow the service map of the destination country. Identifying the nearest authorised centre, its response time and the spares to be held on site is more useful than comparing brand reputations in the abstract.
Published Oil and Gas Deliveries
MPMC lists a 3.3 MW oil and gas field camp installation in Saudi Arabia on Cummins KTA50-G3 engines with Leroy-Somer LSA50.2 L7 alternators, a 6.8 MW Iraqi oilfield lease on Perkins 4016TAG2A and 4016-61TRG3 engines with a 50°C copper radiator and DSE7320 control, and a 10.28 MW Brazilian offshore project on Cummins KTA50-G12 engines containerised for marine deployment. These establish delivery at this scale and in these conditions rather than suitability for a particular classified area.
Selection Checks for Upstream Duty
• Obtain the hazardous-area classification drawing before any equipment decision.
• Verify hazardous-area suitability item by item, by zone and by certification regime.
• State the duty as continuous or prime, and give both the maximum and minimum load.
• Request the derating calculation at site ambient and altitude.
• Specify the corrosion class against measured exposure, including produced-water effects.
• Confirm the redundancy scheme, fire and shutdown interfaces, and the named regional service centre.
